What are the CSST gas line requirements?

Submitted by Ray Thornburg on Tue, 02/12/2013 - 12:37


A Discussion About CSST Gas Lines and its Requirements

Csst stands for corrugated stainless steel tubing. This type of gas line tubing is very popular among builders and contractors because of its ease of use, flexibility and its ability to save on labor installation costs especially over black iron pipe. Although there have been a few concerns with this type of pipe over damage from nearby lightning strikes. This may have caused the rather thin pipe to burst; which resulted in fires. It is thought that the proper installation and bonding of this piping system makes it a safe alternative to black pipe. Millions of homes have csst installed in them.

CSST typically has a yellow pvc or polyethylene outer jacket which mainly serves to protect the stainless steel tube from chemicals and abrasion.

The flash shield type is another type with a typically black jacket that has an additional layer of protective coating which is supposed to dissipate electrical energy for improved lightning protection.

The manufacturer of these products specify how they are to be installed and all installers must be certified by the manufacturer. All parts used with a system must be sourced from the same manufacturers system. In other words don’t mix brand A with brand B.  Below are some abbreviated and paraphrased rules for csst gas line installation. For the complete rules please download a copy of the instruction manual for the brand of csst that is being used. Get the tracpipe install guide here.  Here is the gastite install manual.

Common Requirements for CSST

·         System should be properly bonded and grounded. The bonding conductor shall be no smaller than #6 AWG copper or equivalent.  References irc  2006 G 2411.1, irc 2012 2411.1.1. For more info about grounding and bonding go here.

·         Care should be taken to maintain as much separation as possible from other electrically conductive systems in a building. This includes chimney liners, metal duct systems and electrical cables.

·         Do not install in a chase that includes a metallic chimney liner or appliance vent that protrudes through the roof. If it is necessary to do this then the metallic chimney needs to be grounded and bonded and separation from the csst must be maintained.

·         Rigid termination of tube ends required.

·         Csst is suitable for outdoor use. The outer jack is uv resistant and flame resistant.

·         Tubing must be protected from contact with sharp objects including metal cabinet edges or metal studs edges.

·         Do not bend the pipe too much. Bend radius specifications are in the manual.

·         Support typically- non rooftop non wall cavity- vertical or horizontally- 3/8” pipe support every 4’. Support ½” pipe every 6’. Support ¾” or larger pipe every 8’. Pipe shall be supportive but not restrictive.

·         Holes drilled for pipe should be ½” larger than the pipe.

·         Most CSST fittings are approved for concealed spaces.

·         Manifold stations, shut off valves and regulators cannot be concealed.

·         Strike plates are required.

·         When installed outdoors seal gaps in covering with a self bonding silicone tape.

·         When installed alongside the outside of a structure it needs to be protected inside conduit or a chase up to 6’ in height. Elsewhere it needs to be protected where subject to damage.

·         Cannot be run within ductwork.

·         Must be protected by a watertight conduit ½” larger than the pipe when ran through masonry.

·         Moveable appliance must use a stub out with an appliance connector.

·         Non moveable appliance can be directly connected.

·         Drip legs and shut off valves must be securely mounted.

·         When an appliance has a vent that protrudes through the roof then contact between the csst and the appliance cabinet is prohibited. Certain csst products excepted ( i.e. the black jacketed flash guard type products.)

·         When roof mounted it must be 3” or more off the roof and supported with appropriate clamps and no less than 6’ apart. 1” diameter pipe or greater- 8’ apart.

·         Pad mounted equipment (i.e. not connected to building) must use an appliance connector.

·         Can be used in a gas fireplace. Not a wood fireplace. ( must verify with the manufacturer’s instructions first) Brands vary.

·         Cannot be buried directly. If it is buried then it must be in watertight conduit ½” bigger than the pipe sealed to prevent water entry. Typically no venting is required by the manufacturer in this instance. Check local codes.

·         Regulators in vented area or with vent limiters.

·         Sized and support per manufacturer’s  tables.

·         Repair if crush depth is more than 1/3rd the diameter of piping.

·         System should be tested to 1.5 times the working pressure but not less than 3psi.  reference Irc 2006 G 2417.4.1

Let's take a look at some common deficiencies.

bonding at meter

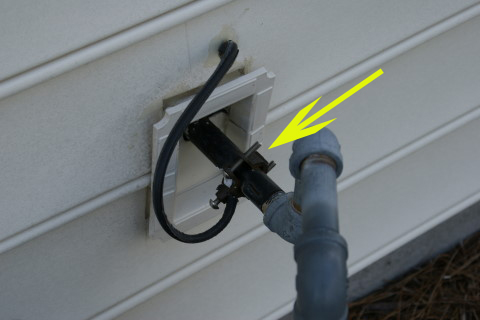

    Picture shows a proper bonding clamp at the meter.






unprotected csst

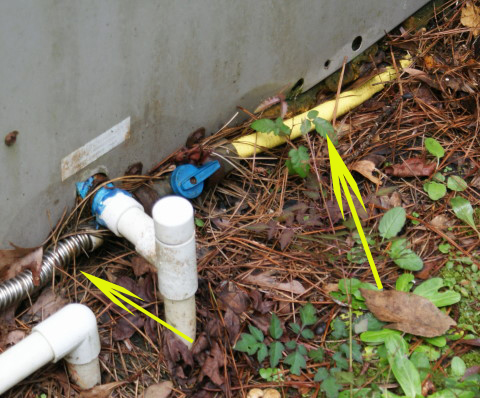

     Here is an example of unprotected csst. On the left the outer covering has been removed. On the right it is partially buried. CSST needs to be protected where subject to damage.






poor support for csst

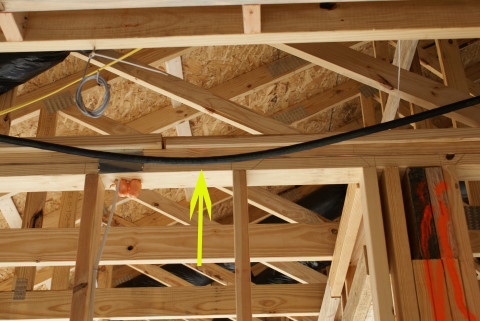

    This one is poorly supported. Max support interval is 8'.






csst unprotected

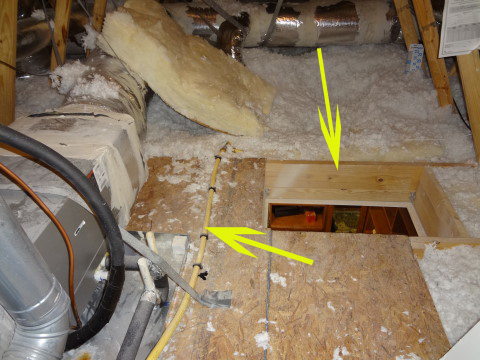

    This gas line is at the top of an attic scuttle hole. Should be protected when within 6' of scuttle hole or where it is subject to damage.






unprotected metal edge.

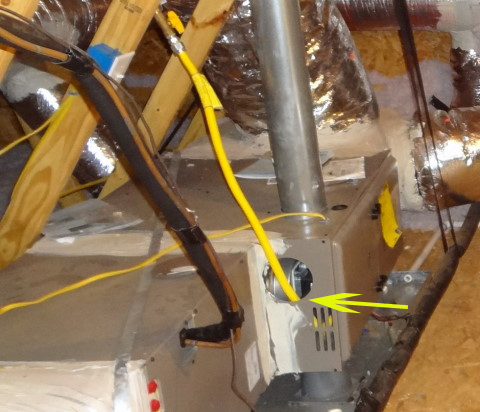

   In this picture the sharp edge of the metal cabinet should have a grommet to protect the gas line. Even an appliance connector like this needs to be protected.







not tested to 3 psi

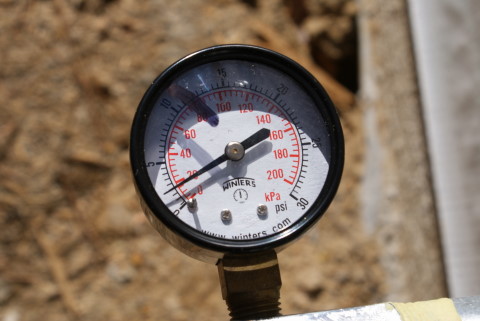

    Gauge reading shows less than 3 psi. System should be tested to at least 1.5 times the working pressure but never less than 3psi.






csst through foundation wall

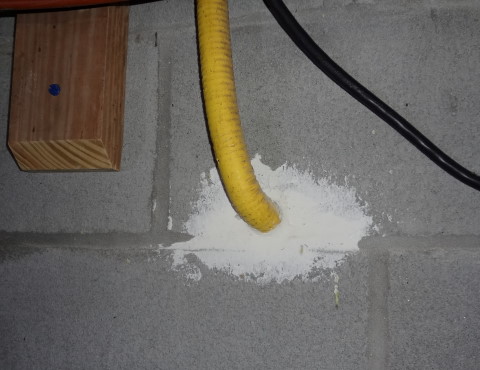

     Here is a csst line improperly installed through a foundation wall. It should be in a watertight conduit 1/2" larger in diameter than the gas line.

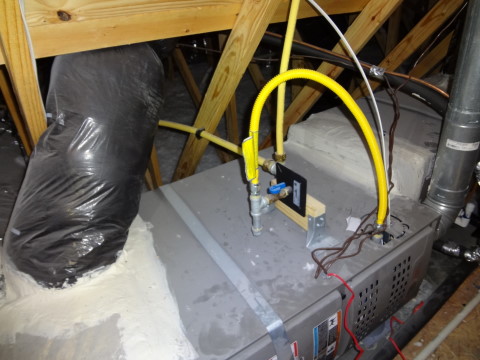

proper hook up

    Proper hook up here. Drip leg, cut off, even an appliance connector.  Good work men!






csst damage from lightning strike

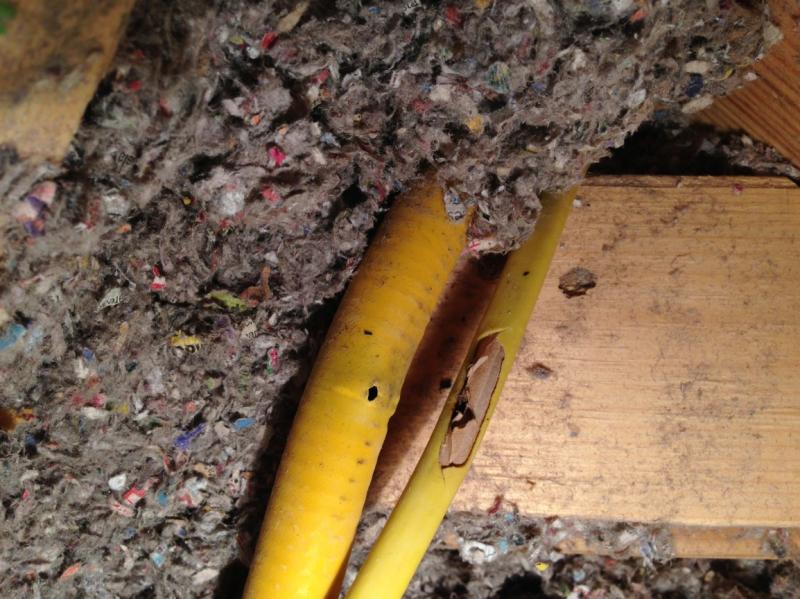

    A fellow from Texas sent me this photo. It shows the damage to a csst gas line from a nearby lightning strike. This is the reason why csst should be separated as much as possible from electrical cables. The man said it was a miracle his house didn't burn down.



Bonding CSST     Picture shows how the bond connection is made when CSST is used. Note that the ground rod is also connected to the service or neutral terminal. Though this has always been a manufacturers requirement; the IRC code specifies this bonding requirement for all types of CSST since at leat 2009.

Submitted by Ray Thornburg on Tue, 02/12/2013 - 12:37


Anonymous | Fri, 07/23/2021 - 11:13

is it ok to run CSST lines down walls in-between the sheetrock and outside walls as long as they are secured properly every 3'? thanks in advance.

Ray Thornburg | Sat, 07/24/2021 - 15:31

If I understand your question you are asking if the CSST can be run inside a wall cavity much like other plumbing pipes or insulation. The answer is yes but you muct provide nail guards to protect it from physical damage where it goes through the top plate or stud. The gastite manual has more information on this and some pictures. The link is at the top of this article. Hope this helps....

Anonymous | Tue, 10/27/2020 - 08:58

Hello, Is it OK to have the CSST line in direct contact with the ground if it is located in a crawl space (and is not properly bonded)? What would happen if lightning struck the home, or the ground near the home?

Ray Thornburg | Sat, 10/31/2020 - 16:33

Piping and electrical lines of all types under the home have to be supported by the house and cannot just lay on the ground.  This includes plumbing supply line, drain lines and gas lines. Incidental contact with the ground is ok (as far as I know). The current rules on bonding is that it is required if CSST of any length is present in the home. Hope this helps....Ray
