How to Wire a Three Way Switch

This discussion will focus on how a three way switch works and show some examples of how to wire them. A three way switch is used to operate a fixture from two locations like a ceiling fan for instance. First this advice - Turn the power off before working with electricity. This discussion is only meant to help and is not all inclusive so take proper safety precautions and learn how to work with your tools and with electricity. Be safe!

Both single pole and three way switches are used to control ceiling fans and other fixtures. We'll show some examples of both.

A regular single pole light switch has two screws on it (plus the ground). It is designed to interrupt the current (in the hot wire). A single pole switch is either on or off and has "on" and "off" printed on the switch. These can be used in a single location to control the light and fan of a ceiling fan for instance.

Remember that a three way switch is always installed in pairs. A three way switch will have three screws plus one more for the ground.  The two top screws will be for the travelers.  The travelers simply connects one three way switch to the other. The other screw which is called a common is either connected to the power source or to the fixture (load). In my drawings I did not show the ground wire so that the illustration would not be cluttered up. Make sure you know that the grounding terminals must be connected to each switch and to each other (and to metal boxes if they are used). Three way switches do not have "on or off" printed on them.

Study the pictures below.



single pole switch

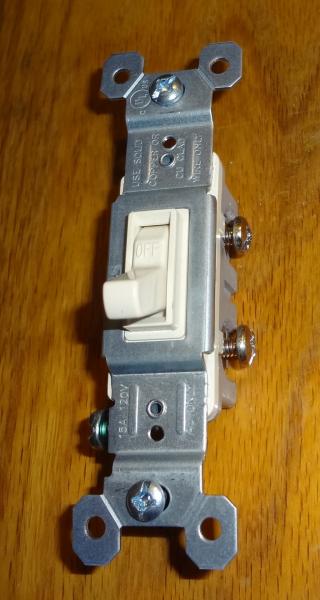

     Single pole switch shown. It is either on or off. Only the "hot" wire is switched.

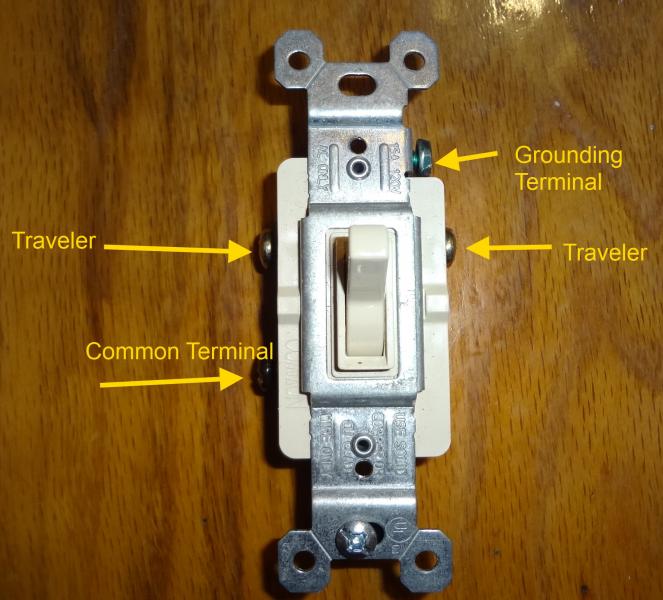

three way switch parts   The travelers connect to another three way.... their job it to complete the circuit to the other switch.  The commons either connect to the source of power or to the fixture. Always connect the grounding (bare wire) to the grounding terminal. Three ways are always used in pairs. A three way switch controls a light from two locations.





When to Use a Four Way Switch

If you are going to control a fixture from more than two locations then a four way must be inserted between the three ways and one set of travelers will be connected to the top two terminals and another set connected to the bottom two terminals. (More on this later)



typical single pole switch wiring



    Typical single pole switch setup. Click image to enlarge.











single pole with three wire

    Most homes are wired using three wire ( three conductors and a ground) where there is a possibility that a ceiling fan will be used. Although two wire could have been used here.

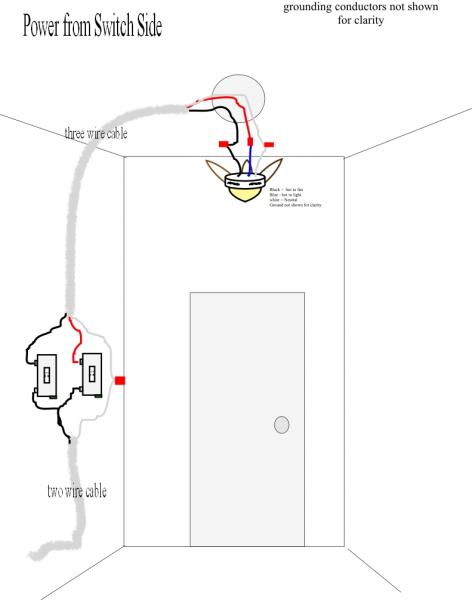

two single pole swiches to ceiling fan

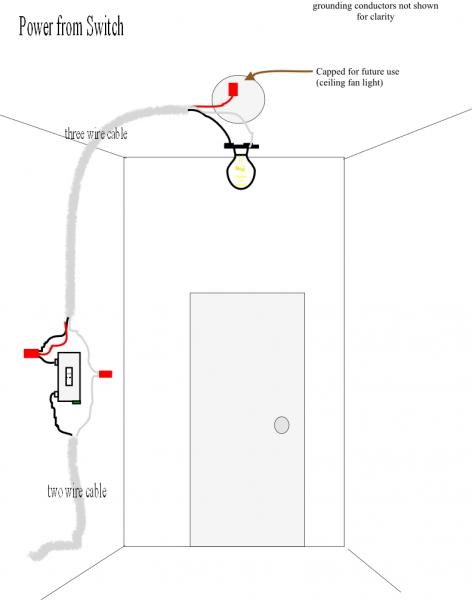

    In this setup a separate single pole switch is used to control the light and the fan. Power is coming from the switch side.











two single poles power from fixture

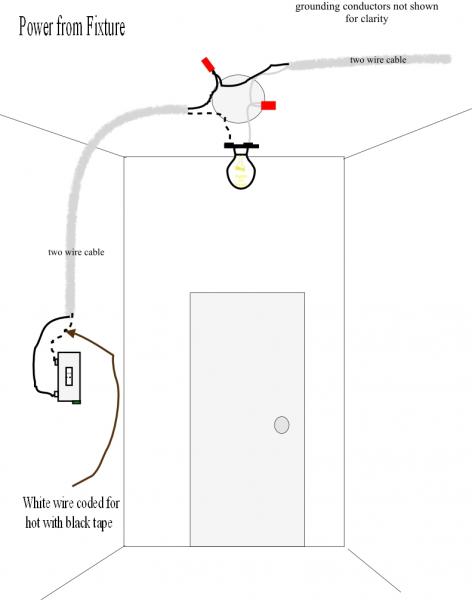

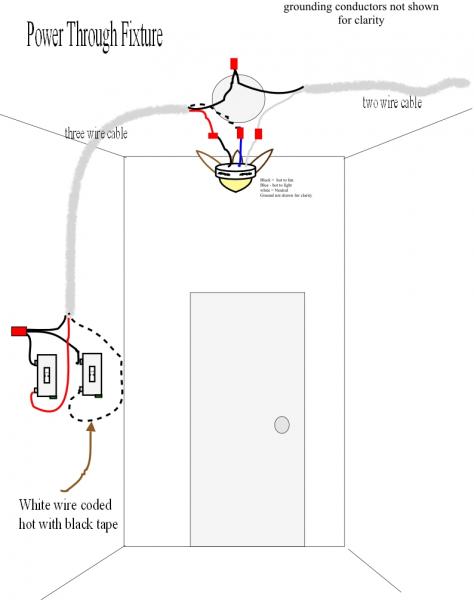

   Sometimes the power is coming from a different direction. The white wire (dotted line) should be marked with black tape to signify that it is now hot where required.

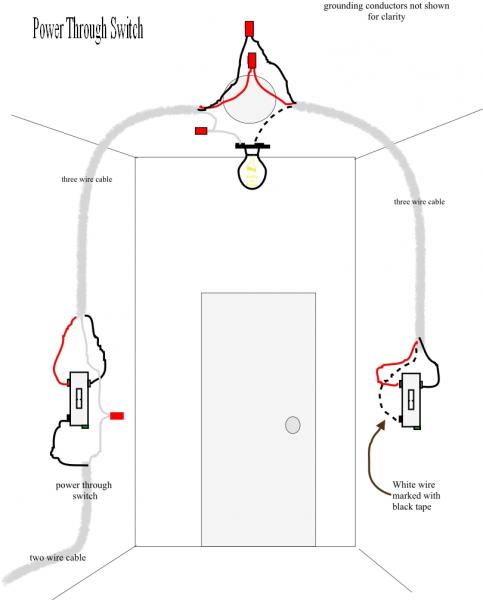

how a three way is used

Figure 7     Typical three way wiring diagram. Note that the travelers are connected to each other. One common is to the power source and the other (white wire with black tape) goes to the fixture.









three way power through fixture

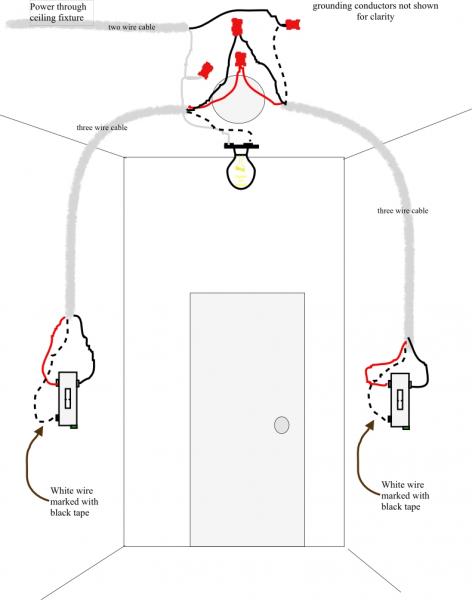

    In this example power is supplied from above.













separate three ways for light and fan

    In this example there is a switch for both the light and the ceiling fan from two locations. Click the image to enlarge.













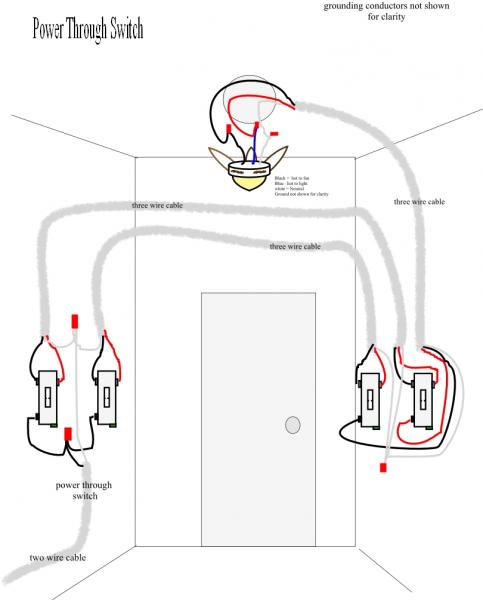

three way power through fixture

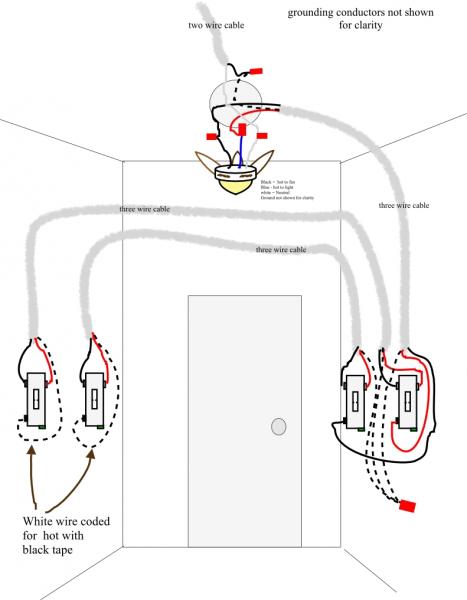

   In this example power is through the fixture. Two pairs of three ways controlling a ceiling fan.











The Four Way Switch

four way switch install method

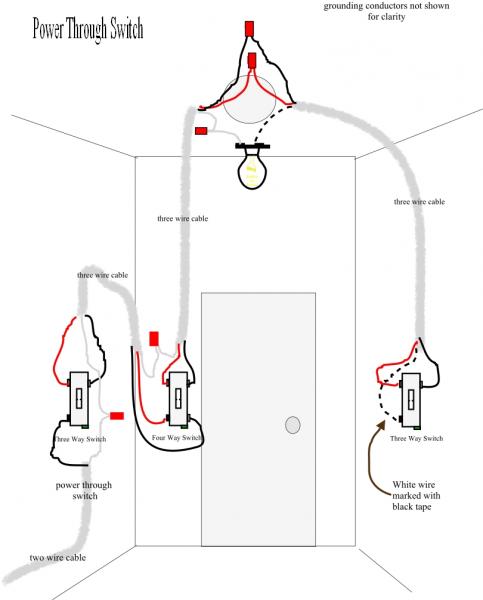

     One or more four ways is/are placed between two three ways. Hook one pair of travelers to the top and the other to the bottom. Use a four way to control the light from three or more locations.











Trouble shooting



  • If you're having trouble with a multi-switch setup it is likely that some inexperienced person installed a fixture or switch incorrectly or made a bad connection.
  • Note what kind of switch it is... single pole or three way.  A single pole has "on, off" on it. Three and four way switches do not. This can be done without taking the cover off and will give you clues as to the wiring setup.
  • A switch which is bad will have a different feel. However they can be taken out and tested with a multi-meter. If one three way is found to be bad then both should be replaced.
  • As you can see from above a loose connection anywhere in the system could cause problems. First think and observe what is happening with the fixture and it will give clues as to what is going on. For instance if the light works but the fan doesn't. Are they switched separately? Is a three way used or are they single pole switches? Where is the power coming from?
  • Frequently you have to determine which conductor is "hot" entering the box. A multi-meter is useful for this as well as observing how and what type of wires are entering the box.
  • Learn how to use a multi-meter and to work with electricity safely.
  • The travelers can be checked this way- Wire nut the suspected travelers together in one switch box and check for continuity with a multimeter in the other switch box. If the meter shows no resistance then those are the travelers.
  • The "hot" wire can be checked with a multimeter set to voltage. Switch the power off. Separate the wires (don't allow them to touch). Switch the power on. Touch one probe to ground and the other to each wire until you measure voltage. This wire is your supply to the common terminal. Switch the power back off to hook up your switch.
  • The three way switch itself can be tested as follows. - Set the multimeter to ohms and check the resistance between the common and each of the traveler terminals while activating the switch. There should be zero resistance to only one terminal with the switch in the up position and to the other terminal with the switch in the down position.
  • If one of the travelers becomes loose and disconnected you will notice that -  when one switch is in the on position the other switch will appear to work (turn the lamp on and off);  but if that switch is off the other switch will not work. (As in figure 7 above.)
  • If a neutral conductor becomes loose and disconnected the lamp will not light.
  • If a common (hot conductor) becomes disconnected the lamp will not light.
  • In figure 7 above suppose a ceiling fan with a light were hooked up. Now suppose someone by accident hooked one of the travelers to the light or fan. Then you would get some very strange behavior depending on the position of the switches. It would vary from toggling between the fan and the light or turning on both at the same time. Always verify the travelers using the procedure outlined above to get it right. If the light works from both switches but the fan doesn't it could be a loose connection at the fixture.

Commentary on Recent Code Changes

Some of the examples above show the traditional method of wiring a switch leg (or switch loop) where current is brought to the switch through the fixture by using a two conductor cable (plus ground). This method effectively eliminates the neutral in the switching process. New rules enacted in the 2011 NEC requires a neutral to be brought to each switch that controls a lighting load. This changes the way in which those fixtures must be wired. The probable reason for this is the recent advent of new types of monitoring switches (which activate when someone enters a room for example) which always use a minute amount of current even when the fixture is turned off. This current must have a return path for that small amount of current. The writers of the code want the neutral to be that return path and not the grounding conductor. So what does this really mean. It appears that the power must arrive at the switch first (then go to the light) so that the neutral will be available at the switch box.
